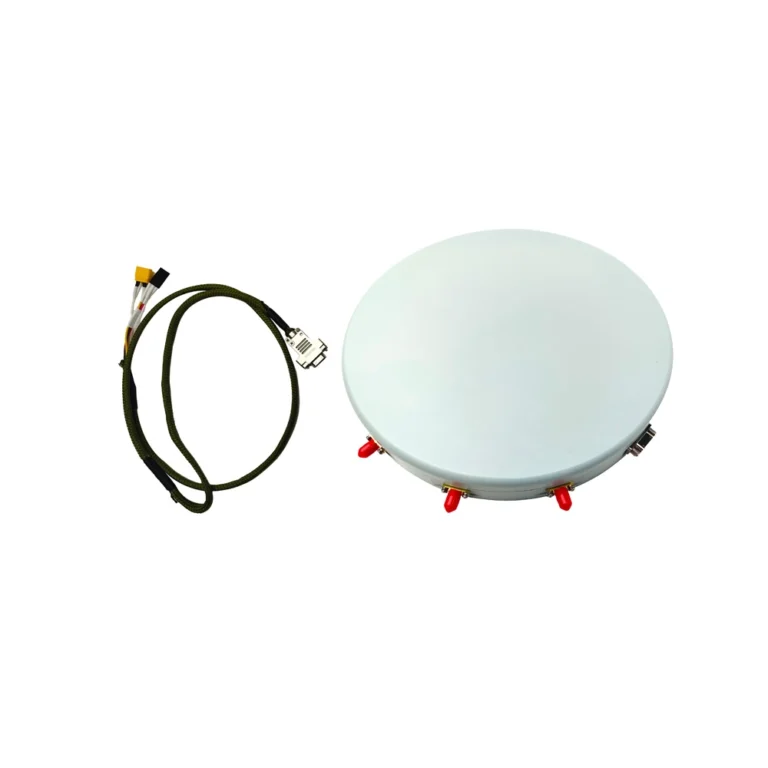

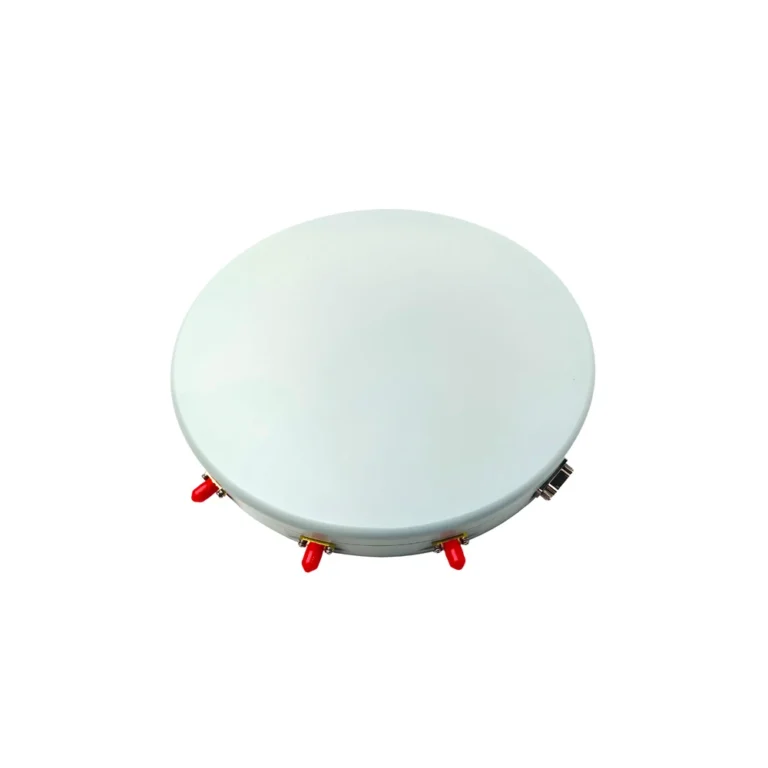

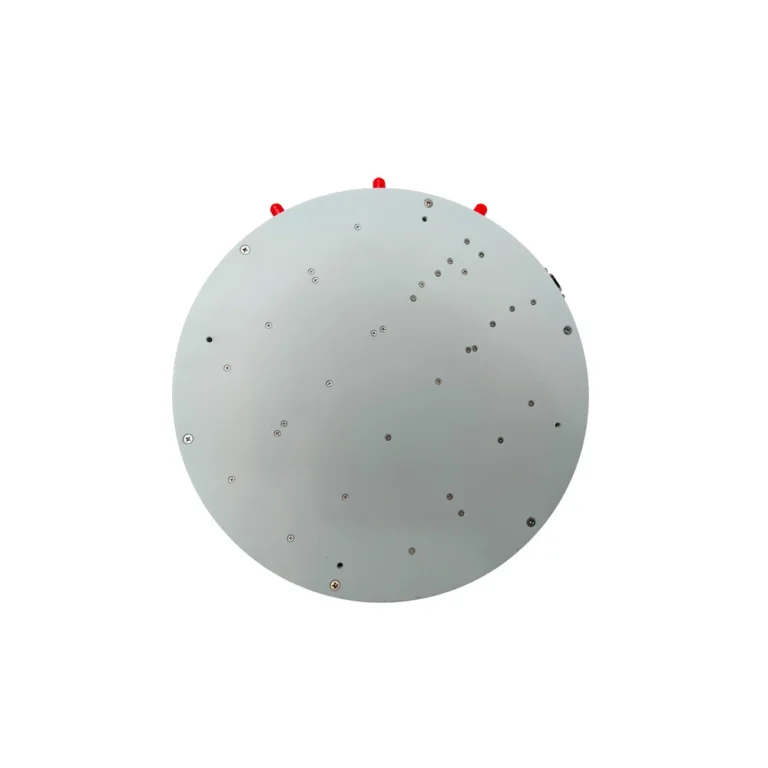

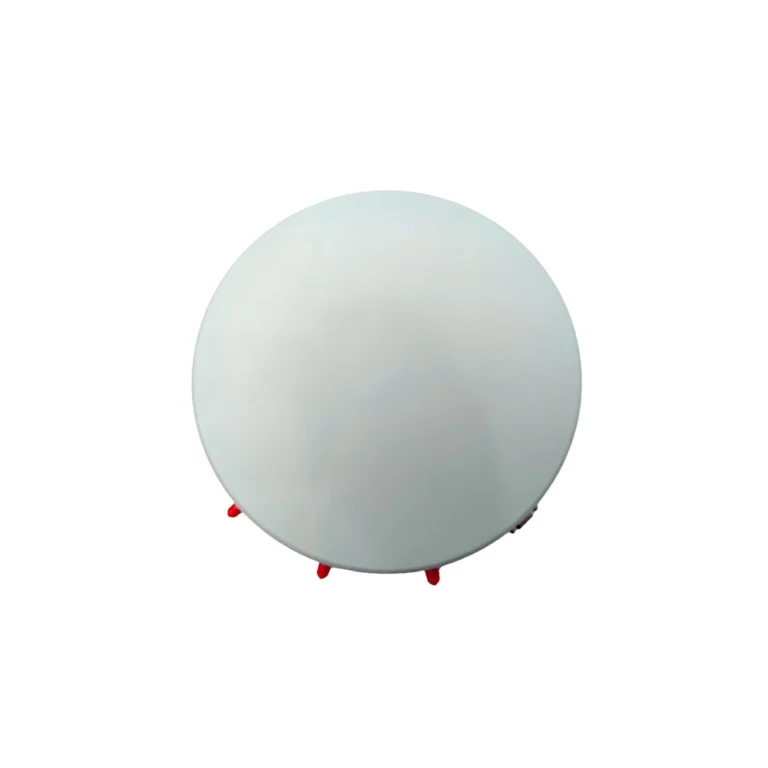

Mini-7-Element Multi-System Satellite Navigation Anti-Jamming All-In-One
Model: SGX-108
SGX-108 miniaturized 7-element multi-system satellite navigation anti-jammingintegrated device is a compact satellite navigation anti-jamming integrated devicedesigned for civilian drones and industry users. lt supports BDS + GPS + GLONASS+ GALlLEO, with anti-broadband jamming capability and a maximum interferenceresistance of 6. The device integrates an antenna array, anti-jamming componentsand a satellite navigation receiver, featuring miniaturization, lightweight design, and low cost.
Product Parameters:
Anti-interference capability:
ISR: Single>110dBc
Three>100dBc
Six≥90dBc
Interference Type:
Band-limited Gaussian white noise interference
Spread spectrum matched filter interference
Pulse interference,sweep interference
Mixed interference
Anti-interference airspacelorientation:0°~360°,pitch:-90°-90°
Volume: Φ220*29.5mm
Power consumption: ≤25w
Weight: ≤1200g
RF output description:
Output signal frequency:1561.098MHZ\1575.42MHZ\1602MHZ
RF output power: -70~-60dBm
Output impedance:50 ohms
FAQ
What types of platforms are compatible with your gnss anti-jamming antennas?
Our GNSS anti-jamming antennas are compatible with a wide range of platforms, including industrial UAVs, agricultural drones, autonomous systems, mobile mapping equipment, marine navigation, and robotics. They are designed for various commercial and civilian applications, ensuring high performance in complex signal environments.
How do your antennas handle interference from multiple sources?
Our antennas are equipped with advanced signal processing technologies that allow them to suppress interference from multiple sources. Depending on the model, they can suppress up to 7 interference signals from different directions simultaneously, ensuring stable and continuous GNSS signal reception even in challenging environments.
Can the antennas protect against GNSS spoofing?
Yes, our antennas feature both software and hardware-based anti-spoofing capabilities (optional), which help to safeguard against false GNSS signals and ensure reliable positioning and navigation.
What is the power consumption of your antennas?
Our GNSS anti-jamming antennas are designed with energy efficiency in mind. The power consumption ranges from less than 7W for smaller models to around 30W for more advanced models, making them suitable for a variety of platforms without compromising battery life.
What are the operational temperature ranges for your antennas?
The operational temperature for our antennas ranges from -40°C to +60°C, making them suitable for use in extreme weather conditions, from cold environments to high temperatures.
Are your antennas easy to integrate with GNSS receivers?
Yes, our antennas are designed for plug-and-play integration with a variety of GNSS receivers. The standard SMA female and J30J connectors ensure compatibility with most commercial and industrial GNSS receivers, making installation and integration straightforward.
What are the key features of your most advanced antennas?
Our advanced models, such as the SGX-210 and SGX-211, feature multi-frequency, multi-array designs with superior interference suppression. They can handle up to 15 interference sources simultaneously, ensuring stable performance in the most demanding environments. They are ideal for use in fixed-wing aircraft, rotary-wing UAVs, and other high-performance platforms.
How do I integrate the anti-jamming system (SGX-202 4 Frequency 8 Channel GNSS Anti-Jamming Antenna) with a UAV, such as the Matrice M400?
The SGX-202 4 Frequency 8 Channel GNSS Anti-Jamming Antenna is designed for seamless integration with UAV platforms like the Matrice M400. The integration process is straightforward and involves the following steps:
(1) Interface Connections:
The antenna uses a J30J-21 connector for power and data transmission. The key connection pins are:
Power: 12V DC (Pins 1, 2, 3 for positive, Pins 7, 8, 9 for ground).
Data Output: Serial ports (TX1, RX1, TX2, RX2) for data communication.
RF Output: The SMA-KF connector outputs the up-converted GNSS signal to the UAV’s GNSS receiver.
(2) Installation:
Mount the antenna securely on the UAV. The SGX-202 antenna is lightweight, weighing only 1200g, and is compact (160mm × 160mm × 45mm), making it ideal for integration with platforms like the Matrice M400.
Ensure the antenna is positioned to minimize signal obstructions and optimize reception in the field.
(3) Connection to Matrice M400:
Connect the RF output from the antenna to the GNSS receiver of the Matrice M400 using the SMA-KF interface for the RF signal.
Connect the serial data ports (TX/RX) to the UAV’s communication system to transmit processed positioning data.
(4)Power Supply:
Power the antenna with a 12V DC source, compatible with the M400’s power system.
(5)Configuration:
Once the hardware is installed and powered, configure the system through the UAV’s onboard software to ensure the GNSS receiver receives the interference-protected signals from the SGX-202 antenna.
This integration allows the Matrice M400 to maintain stable and reliable GNSS performance, even in challenging environments with multiple interference sources.
