16 Channels GNSS Anti-Jam CRPA System
Model: SGX-210

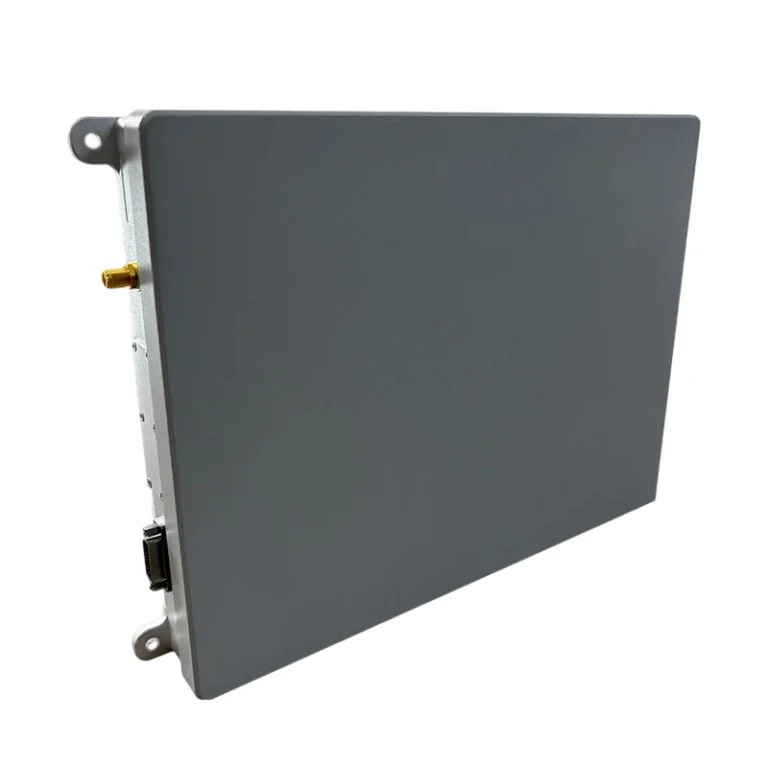

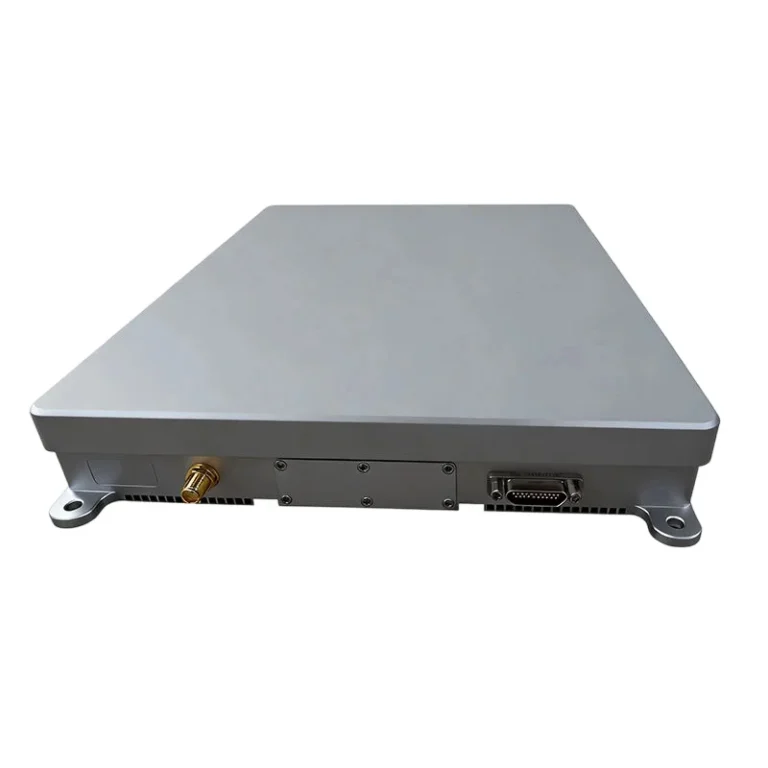

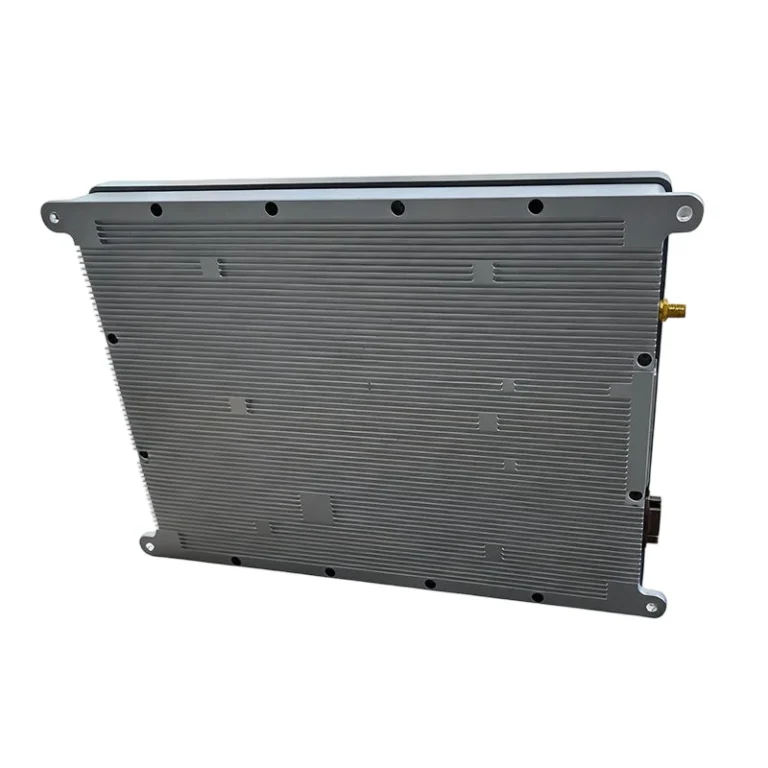

SGX-210 Anti-Jam CRPA System supports critical missions by providing jam free GNSS signals. With an 16-array CRPA antenna, the system can assure the normal operation of GNSS receiverin presence of multiple jamming sources. SGX-210 Anti-Jam CRPA System can be employed using various configuration and operates withcivil and military GPS receivers for the land, sea, air platforms (including unmanned aerialsystems) and fixed installations. The product has an embedded GNSS receiver that supportsall satellite constellations.
Product Parameters:
How it works
SGX-210 mitigates interference by creating nulls in the antenna gain pattern in the direction of jammers, providing significant anti‑jam protection even in dynamic single wideband jammer scenarios. The output is a protected standard Radio Frequency (RF) signal, free from jamming and suitable for input to modern and legacy GNSS receivers.
BENEFITS
- Simple assembly means easy to install or retrofit
- Compatible with all types of external GPS receivers and vehicle navigation systems
- Minimal integration training required
- Light Weight
- Ultra Compact Size
- Superior Suppression Performance
APPLICATION AREAS
- Fixed Winged Aircraft
- Rotary Wing Aircraft
- Unmanned Autonomous Systems
- Armored Vehicles
- Naval Platforms, Coast Guard Platforms
Dimensions (mm): < 260*200*36.5
Weight (g): < 1200
Power Consumption (w): < 30 W
Antenna Array: 16
Simultaneous Independent Nulling: 15
Simultaneous Active Bands:
GPS L1
GAL E1
BDS B1
GLO G1
Nominal Wideband Suppression: > 95 dB J/S
Based on the performance of a typical GPS receiver, in the presence of 15 wideband jammer
Data Interfaces: Serial
Connectors: SMA Female,
Operating Voltage: 24 V DC
Operating Temperature: -40 °C to +70 °C
FAQ
What types of platforms are compatible with your gnss anti-jamming antennas?
Our GNSS anti-jamming antennas are compatible with a wide range of platforms, including industrial UAVs, agricultural drones, autonomous systems, mobile mapping equipment, marine navigation, and robotics. They are designed for various commercial and civilian applications, ensuring high performance in complex signal environments.
How do your antennas handle interference from multiple sources?
Our antennas are equipped with advanced signal processing technologies that allow them to suppress interference from multiple sources. Depending on the model, they can suppress up to 7 interference signals from different directions simultaneously, ensuring stable and continuous GNSS signal reception even in challenging environments.
Can the antennas protect against GNSS spoofing?
Yes, our antennas feature both software and hardware-based anti-spoofing capabilities (optional), which help to safeguard against false GNSS signals and ensure reliable positioning and navigation.
What is the power consumption of your antennas?
Our GNSS anti-jamming antennas are designed with energy efficiency in mind. The power consumption ranges from less than 7W for smaller models to around 30W for more advanced models, making them suitable for a variety of platforms without compromising battery life.
What are the operational temperature ranges for your antennas?
The operational temperature for our antennas ranges from -40°C to +60°C, making them suitable for use in extreme weather conditions, from cold environments to high temperatures.
Are your antennas easy to integrate with GNSS receivers?
Yes, our antennas are designed for plug-and-play integration with a variety of GNSS receivers. The standard SMA female and J30J connectors ensure compatibility with most commercial and industrial GNSS receivers, making installation and integration straightforward.
What are the key features of your most advanced antennas?
Our advanced models, such as the SGX-210 and SGX-211, feature multi-frequency, multi-array designs with superior interference suppression. They can handle up to 15 interference sources simultaneously, ensuring stable performance in the most demanding environments. They are ideal for use in fixed-wing aircraft, rotary-wing UAVs, and other high-performance platforms.
How do I integrate the anti-jamming system (SGX-202 4 Frequency 8 Channel GNSS Anti-Jamming Antenna) with a UAV, such as the Matrice M400?
The SGX-202 4 Frequency 8 Channel GNSS Anti-Jamming Antenna is designed for seamless integration with UAV platforms like the Matrice M400. The integration process is straightforward and involves the following steps:
(1) Interface Connections:
The antenna uses a J30J-21 connector for power and data transmission. The key connection pins are:
Power: 12V DC (Pins 1, 2, 3 for positive, Pins 7, 8, 9 for ground).
Data Output: Serial ports (TX1, RX1, TX2, RX2) for data communication.
RF Output: The SMA-KF connector outputs the up-converted GNSS signal to the UAV’s GNSS receiver.
(2) Installation:
Mount the antenna securely on the UAV. The SGX-202 antenna is lightweight, weighing only 1200g, and is compact (160mm × 160mm × 45mm), making it ideal for integration with platforms like the Matrice M400.
Ensure the antenna is positioned to minimize signal obstructions and optimize reception in the field.
(3) Connection to Matrice M400:
Connect the RF output from the antenna to the GNSS receiver of the Matrice M400 using the SMA-KF interface for the RF signal.
Connect the serial data ports (TX/RX) to the UAV’s communication system to transmit processed positioning data.
(4)Power Supply:
Power the antenna with a 12V DC source, compatible with the M400’s power system.
(5)Configuration:
Once the hardware is installed and powered, configure the system through the UAV’s onboard software to ensure the GNSS receiver receives the interference-protected signals from the SGX-202 antenna.
This integration allows the Matrice M400 to maintain stable and reliable GNSS performance, even in challenging environments with multiple interference sources.
How can your products be applied to agricultural drones?
Our products, especially the SGX series GNSS antennas (such as SGX-201 and SGX-202), provide high-precision positioning services to ensure that agricultural drones can navigate accurately in complex environments. Whether it’s field mapping, crop monitoring, or precision fertilization and spraying, our technology delivers reliable positioning data, helping improve the efficiency and accuracy of agricultural operations.
Agricultural drones often encounter signal interference during operation. How does your Products address this issue?
Our products are equipped with advanced anti-jamming technology, such as the SGX-202 and SGX-206 antennas, which effectively suppress multiple sources of interference, ensuring high stability even in environments with significant signal disruption. In agricultural operations, interference from buildings, trees, and other obstacles can cause signal reflections and multipath interference. Our products use intelligent signal processing technology to ensure drones continue to receive stable, continuous signals in these challenging environments.
Agricultural drones have high weight requirements. Does your company's product design meet this need?
Yes, our antennas are designed with lightweight features. Many models, such as the SGX-205 and SGX-207-2CH, are compact and lightweight, with weights ranging from 160g to 770g, making them perfectly suited for agricultural drones without adding significant payload and affecting flight performance.
If farmland is located in remote areas or has many signal obstructions, can your products maintain reliable positioning?
Our products support multi-frequency GNSS systems, including GPS, GLONASS, GALILEO, and Beidou, which means agricultural drones can still obtain positioning support from multiple satellite systems even in remote areas with obstructed signals. Our antennas can receive multi-frequency signals, ensuring accurate positioning even in complex environments, such as large farmland or areas with tree coverage.
Our agricultural drones often operate in harsh weather conditions. Can your products adapt to these environments?
Yes, our products have excellent environmental resistance. For example, the SGX-201 and SGX-202 antennas can operate stably within a wide temperature range of -40°C to +60°C, adapting to agricultural drones’ operation in harsh weather and extreme climates. Whether in hot, cold, or humid environments, your drone will continue to perform reliably.
Are your products compatible with different brands and types of drones?
Our products are highly compatible and can be integrated with various standard GNSS receivers and drone platforms. Whether it is a lightweight agricultural drone or a large drone system, you can easily integrate our products into existing platforms, ensuring easy plug-and-play installation that enhances the accuracy and stability of the navigation system.
If I have other special requirements, can your company provide customized solutions?
Yes, we offer flexible customization services. If your agricultural drone has specific positioning needs or operates in unique environments, our R&D team can tailor a navigation solution based on your requirements, ensuring you receive the most suitable products and technical support.
